Adjustable clamping elements for toggle clamps with force sensor

go back

Products
- Toggle Clamps
  - Horizontal Toggle Clamps
    - Adjustable clamping elements for toggle clamps with force sensor

Item description/product images

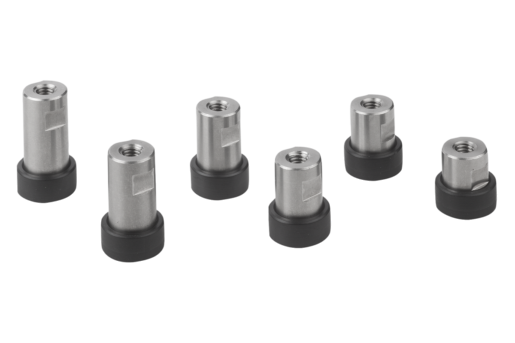

DescriptionMaterial:Spacer body stainless steel.
Grub screw stainless steel.
Protective cap thermoplastic.Version:Stainless steel bright.
Thermoplastic black.Note:The thermoplastic used is characterised by high mechanical strength and rigidity.
Application:The clamping element is used to adjust the clamping force of toggle clamps with force sensor. Clamping elements with different heights are available for workpieces with different thicknesses.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1464 Adjustable clamping elements for toggle clamps with force sensor

140 kB

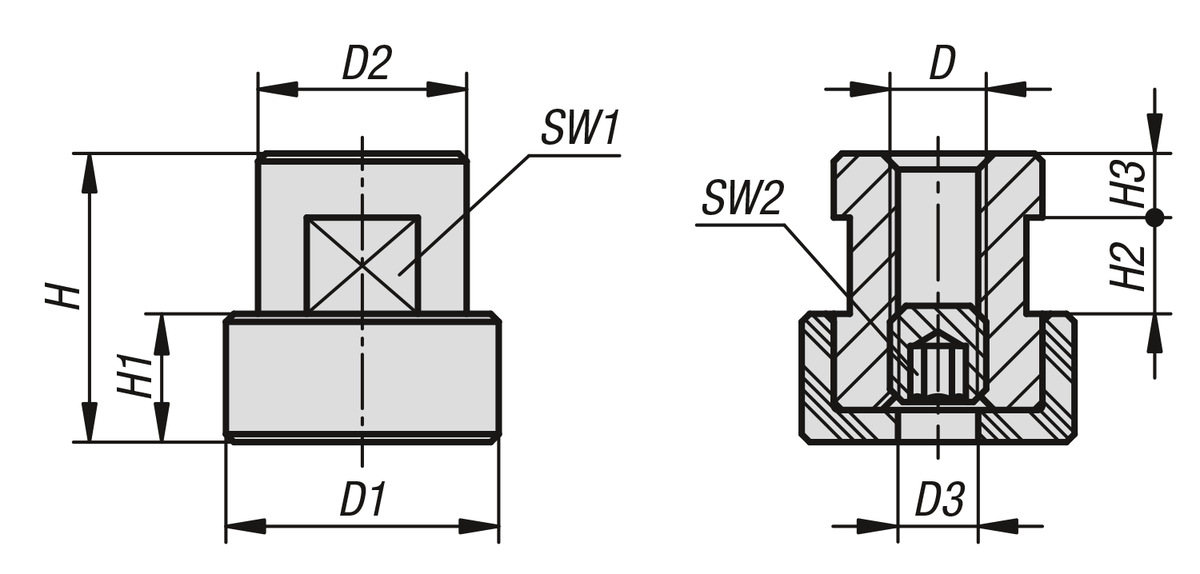

Drawings

Item selection/filter

Order No.	Version 1	D	D1	D2	D3	H	H1	H2	H3	SW1	SW2	Price
K1464.11306X18	adjustable	M6	17	13	5	18	8	6	4	11	3	16.63 $ (USD)
K1464.11306X21	adjustable	M6	17	13	5	21	8	6	4	11	3	16.83 $ (USD)
K1464.11306X23	adjustable	M6	17	13	5	23	8	6	4	11	3	17.06 $ (USD)
K1464.11306X26	adjustable	M6	17	13	5	26	8	6	4	11	3	17.33 $ (USD)
K1464.11306X29	adjustable	M6	17	13	5	29	8	6	4	11	3	17.55 $ (USD)
K1464.11306X32	adjustable	M6	17	13	5	32	8	6	4	11	3	17.80 $ (USD)
K1464.11308X22	adjustable	M8	17	13	5	22	8	8	4	11	4	17.08 $ (USD)
K1464.11308X25	adjustable	M8	17	13	5	25	8	8	4	11	4	17.35 $ (USD)
K1464.11308X28	adjustable	M8	17	13	5	28	8	8	4	11	4	17.59 $ (USD)
K1464.11308X31	adjustable	M8	17	13	5	31	8	8	4	11	4	17.84 $ (USD)
K1464.11308X34	adjustable	M8	17	13	5	34	8	8	4	11	4	18.09 $ (USD)
K1464.11308X37	adjustable	M8	17	13	5	37	8	8	4	11	4	18.29 $ (USD)
K1464.11308X40	adjustable	M8	17	13	5	40	8	8	4	11	4	18.56 $ (USD)
K1464.11306	set	M6	17	13	5	-	8	6	4	11	3	103.23 $ (USD)
K1464.11308	set	M8	17	13	5	-	8	8	4	11	4	124.81 $ (USD)
