Push-Pull Clamps heavy-duty version with handle
K0087

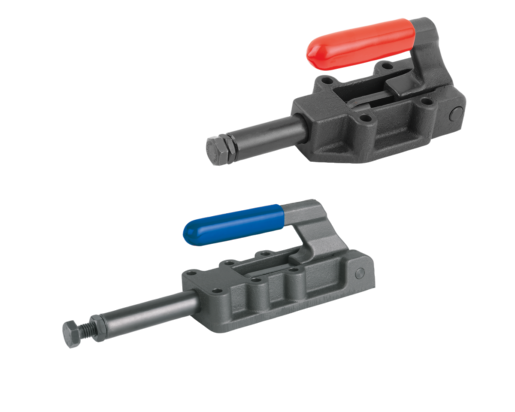

Push-Pull Clamps heavy-duty version with handle

go back

Item description/product images

DescriptionMaterial:Steel.
Body and handle ductile iron (SG iron)
Version:Phosphated.
Plastic grip oil-resistant.
Note:The clamps lock in the open and closed handle positions. They can be used for thrust or tension clamping.
These clamps also have travel limitation for advance and retraction.
Accessory:K0101
K0102
K0103
K0106
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0087 Push-Pull Clamps heavy-duty version with handle 212 kB

Drawings

Push-Pull Clamps heavy-duty version with handle

Overview of items (compressed)

Item selection/filter
Order No.hole
arrangement
Component
color
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F2 N
Clamping
force
F1 N
CADAcc.PriceOrder
K0087.06002blue185°14060003000  74.09 $ (USD)
K0087.12001blue185°150120005000  118.10 $ (USD)
K0087.25001blue185°170250005000  193.32 $ (USD)
K0087.50001blue185°200500007000  287.64 $ (USD)
K0087.0600032red185°14060003000  74.09 $ (USD)
K0087.1200031red185°150120005000  118.10 $ (USD)
K0087.2500031red185°170250005000  193.32 $ (USD)
K0087.5000031red185°200500007000  295.98 $ (USD)
Item No.

AA1A2A3BB1C1C2D

D1HLL1L2MRTravel
S
CADAcc.PriceOrder
K0087.0600892536,5-4633,423125,514631273830M89532  74.09 $ (USD)
K0087.120013383541614132188,520881885540M1014350  118.10 $ (USD)
K0087.25001971145458254412210,32510830010360M1220075  193.32 $ (USD)
K0087.50002541070708557502810,33012739013660M16245100  287.64 $ (USD)
K0087.060003892536,5-4633,423125,514631273830M89532  74.09 $ (USD)
K0087.12000313383541614132188,520881885540M1014350  118.10 $ (USD)
K0087.2500031971145458254412210,32510830010360M1220075  193.32 $ (USD)
K0087.5000032541070708557502810,33012739013660M16245100  295.98 $ (USD)
