Toggle clamps push-pull without mounting bracket

go back

Products
- Toggle Clamps
  - Push-pull Clamps
    - Toggle clamps push-pull without mounting bracket

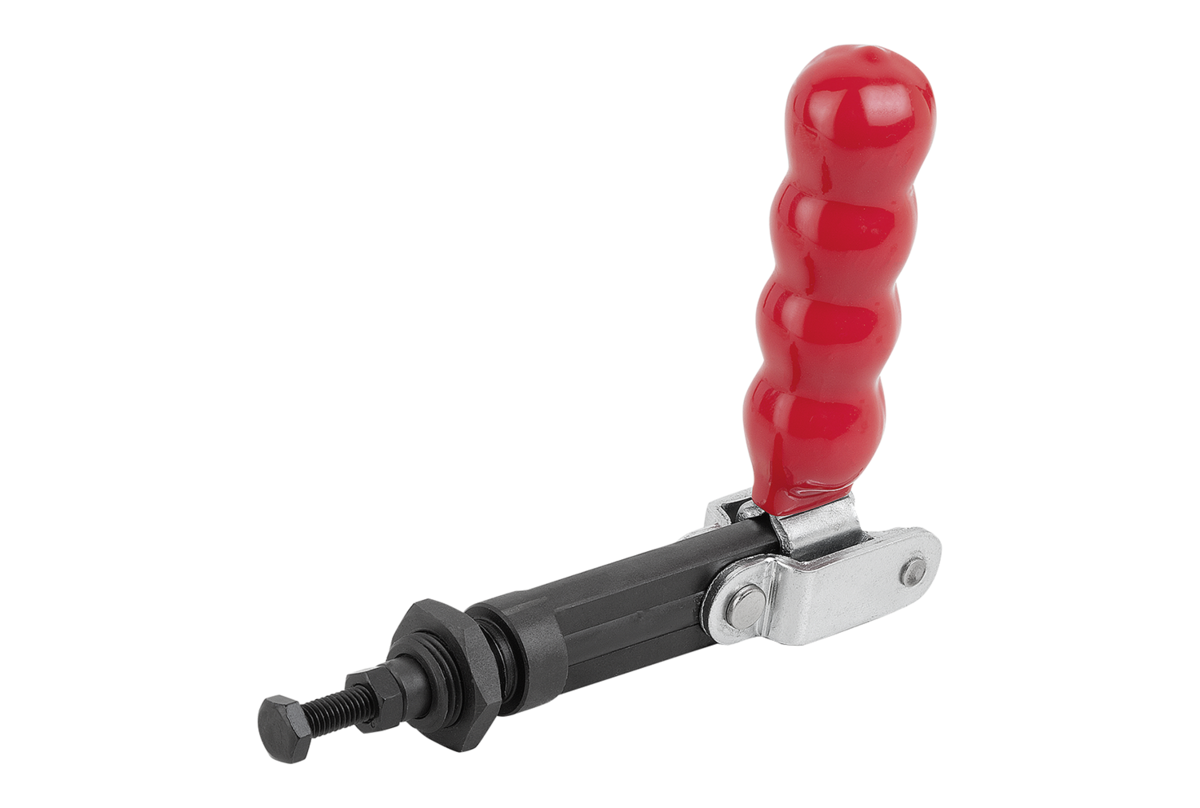

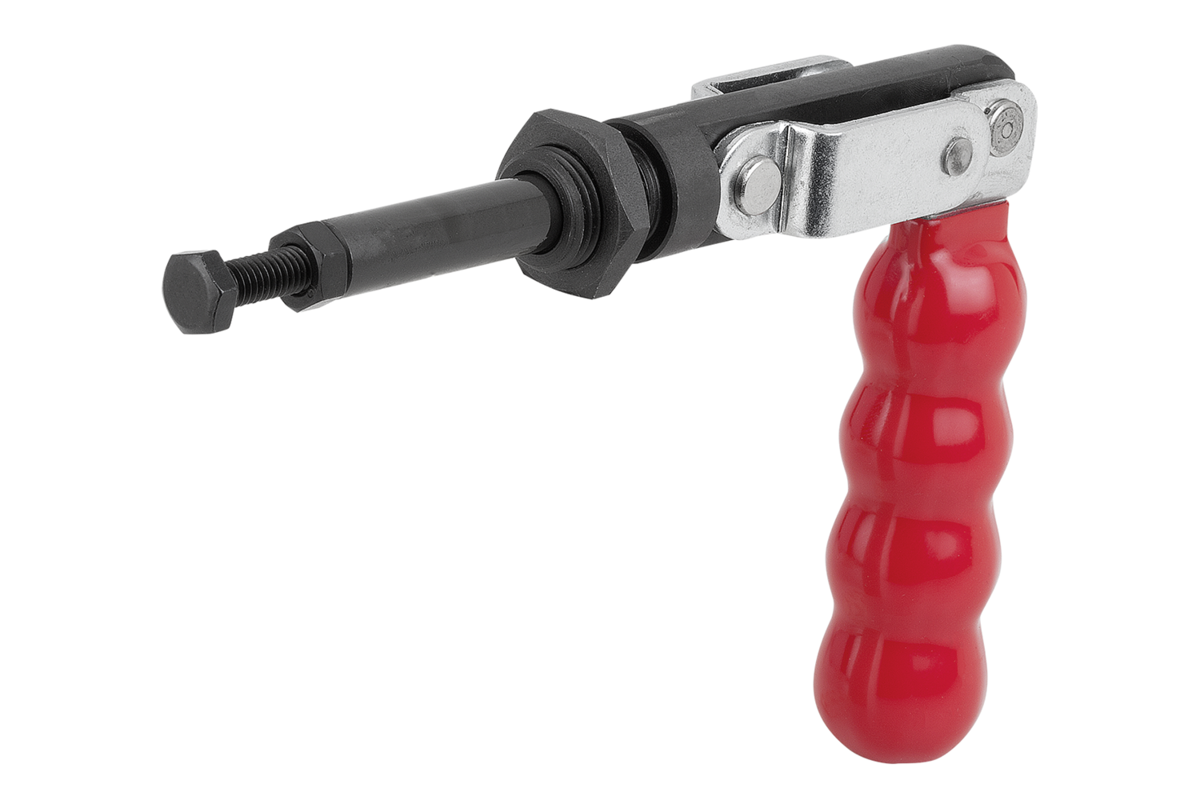

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Connecting rod, guide body and thrust screw phosphated.
Plastic grip oil-resistant.Note:As the push-pull toggle clamps lock in open and closed handle positions, they can be used to clamp when pushing or pulling.
The fastening nut supplied allows the clamps to be mounted in any desired position.Accessory:K0101
K1442
K0102
K0103
K1443
K0106Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1440 Toggle clamps push-pull without mounting bracket

267 kB

Drawings

Item selection/filter

Order No.	Opening angle of handle	Hand force FH N	Clamping force F1 N	Retaining force F2 N	Price
K1440.03500	185°	100	1400	3500	59.60 $ (USD)
K1440.05500	185°	140	1500	5500	74.43 $ (USD)
K1440.07500	185°	160	1600	7500	94.68 $ (USD)

Order No.	B3	C1	D1	D2	H	L	L1	L2	L3	L4	M	M1	R	Travel S	Price
K1440.03500	24	9,5	10	19	104,5	126,4	52	16	18	36	M6x25	M16x1,5	95	31	59.60 $ (USD)
K1440.05500	25,6	12	13	24	120,5	158,5	60	20	30	40	M8x40	M20x1,5	108,5	38	74.43 $ (USD)
K1440.07500	29	14,3	16	28,6	146,3	234,9	92,8	23	40	69,8	M10x50	M24x1,5	132	67	94.68 $ (USD)
