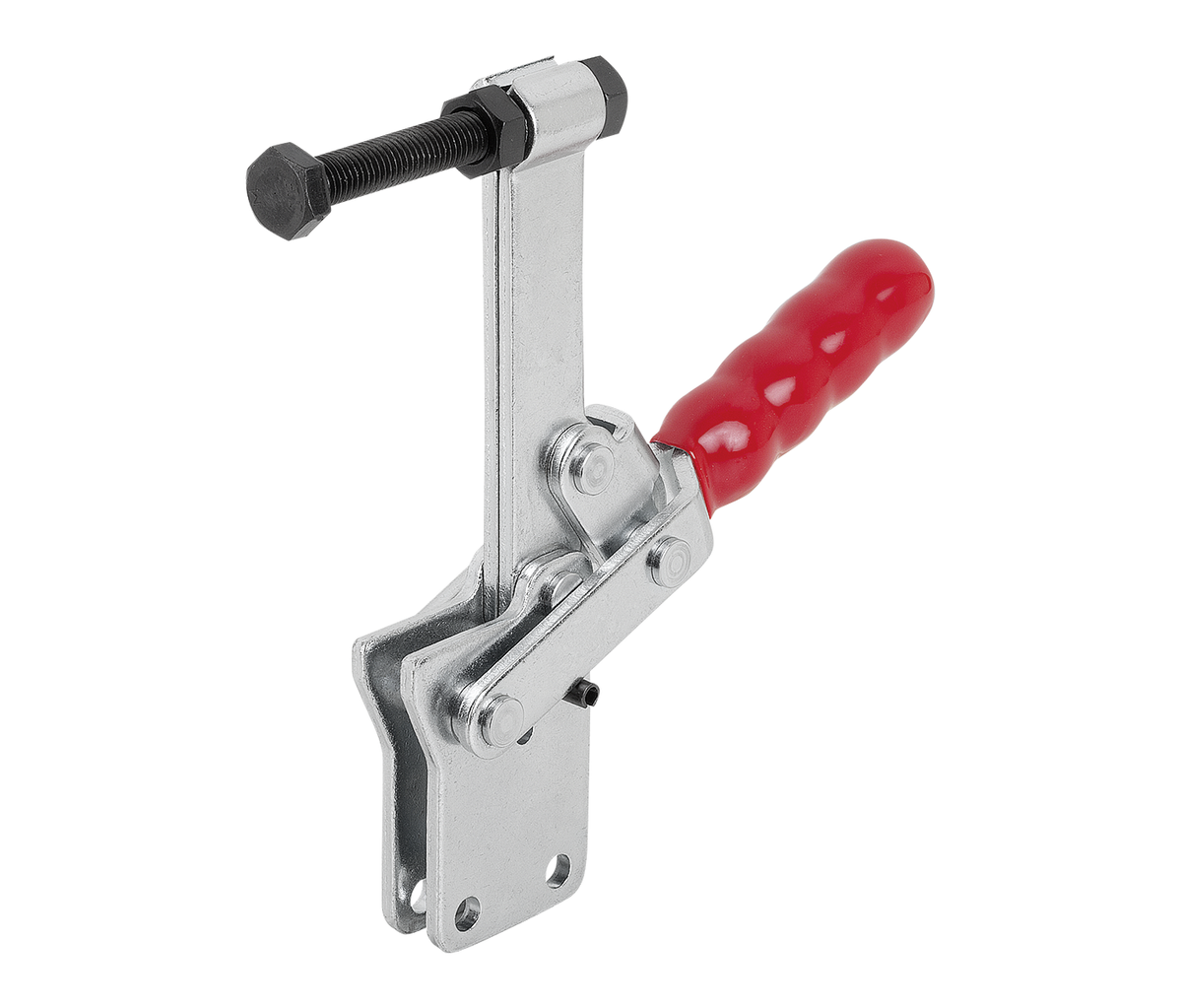

Toggle clamps vertical with straight foot and fixed clamping spindle
 K1244

Toggle clamps vertical with straight foot and fixed clamping...

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with version K1244.00800.Accessory:K0688
K0689
K0690
K0101
K1442
K0102
K0103
K1443
K0104
K0106Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K1244 Toggle clamps vertical with straight foot and fixed clamping spindle 281 kB

Drawings

Toggle clamps vertical with straight foot and fixed clamping spindle

Item selection/filter
Order No.Opening
angle of
holding arm		Opening
angle of
handle		Hand
force
FH N		Retaining
force
F1 N		Clamping
force
F3 N		CADAcc.PriceOrder
K1244.0080095°60°100800600 17.30 $ (USD)
K1244.0240090°70°15024001200 24.03 $ (USD)
K1244.0340090°70°20034001600 32.56 $ (USD)
K1244.0440090°70°25044001600 42.25 $ (USD)
K1244.05400100°50°28054001800 54.83 $ (USD)
Order No.A

A1BB1CC1C2DHLL1MCADAcc.PriceOrder
K1244.0080012,725,412634,59,66,45,211665,828,6M6x44 17.30 $ (USD)
K1244.0240019351264817,57,57,119487,740M8x50 24.03 $ (USD)
K1244.03400325016864229,58,3240124,2565M10x80 32.56 $ (USD)
K1244.044003253201070,4259,58,7245138,2574M12x100 42.25 $ (USD)
K1244.0540050,876,22010113,531,812,712,3335197,5107,8M16x150 54.83 $ (USD)
