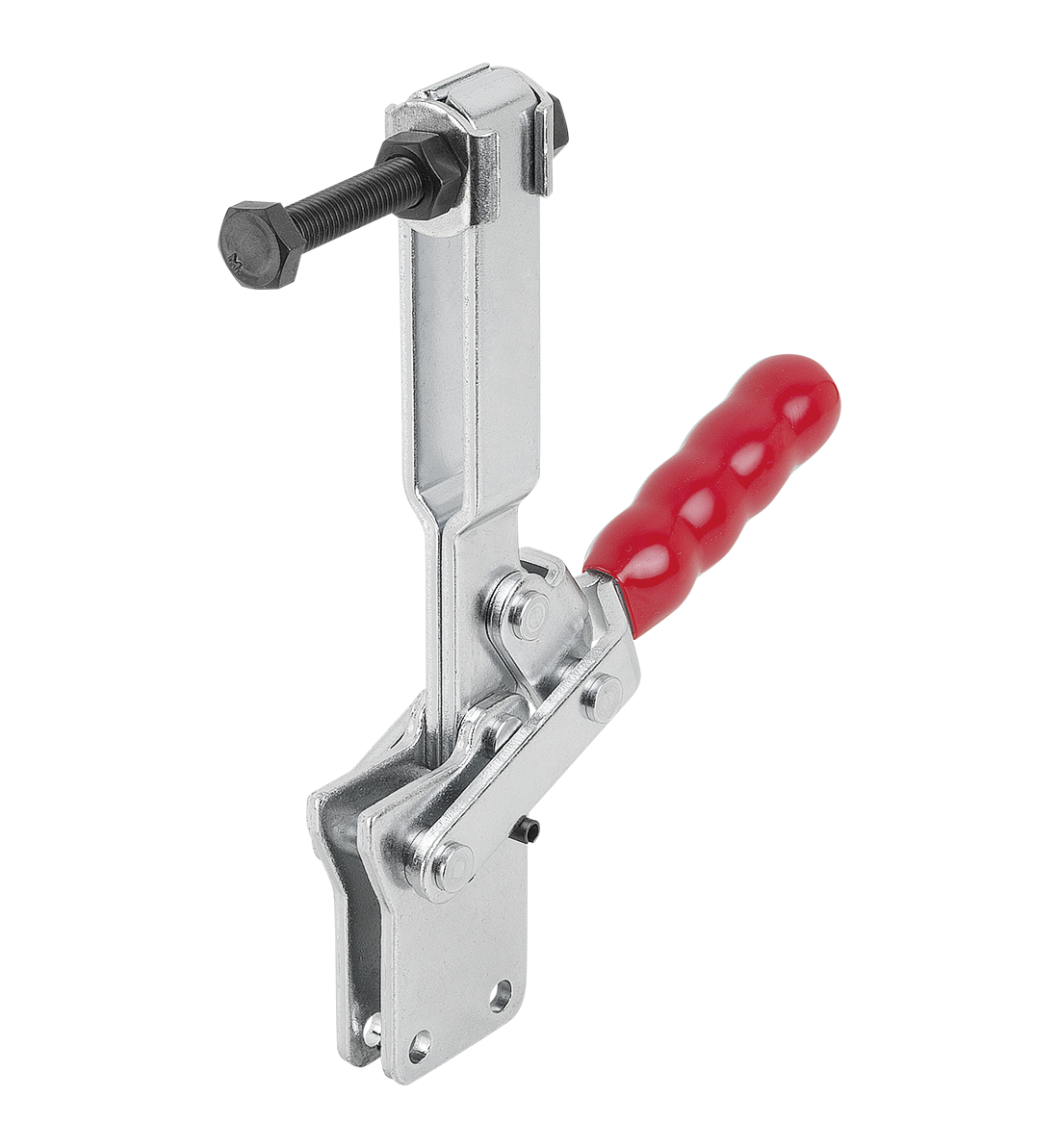

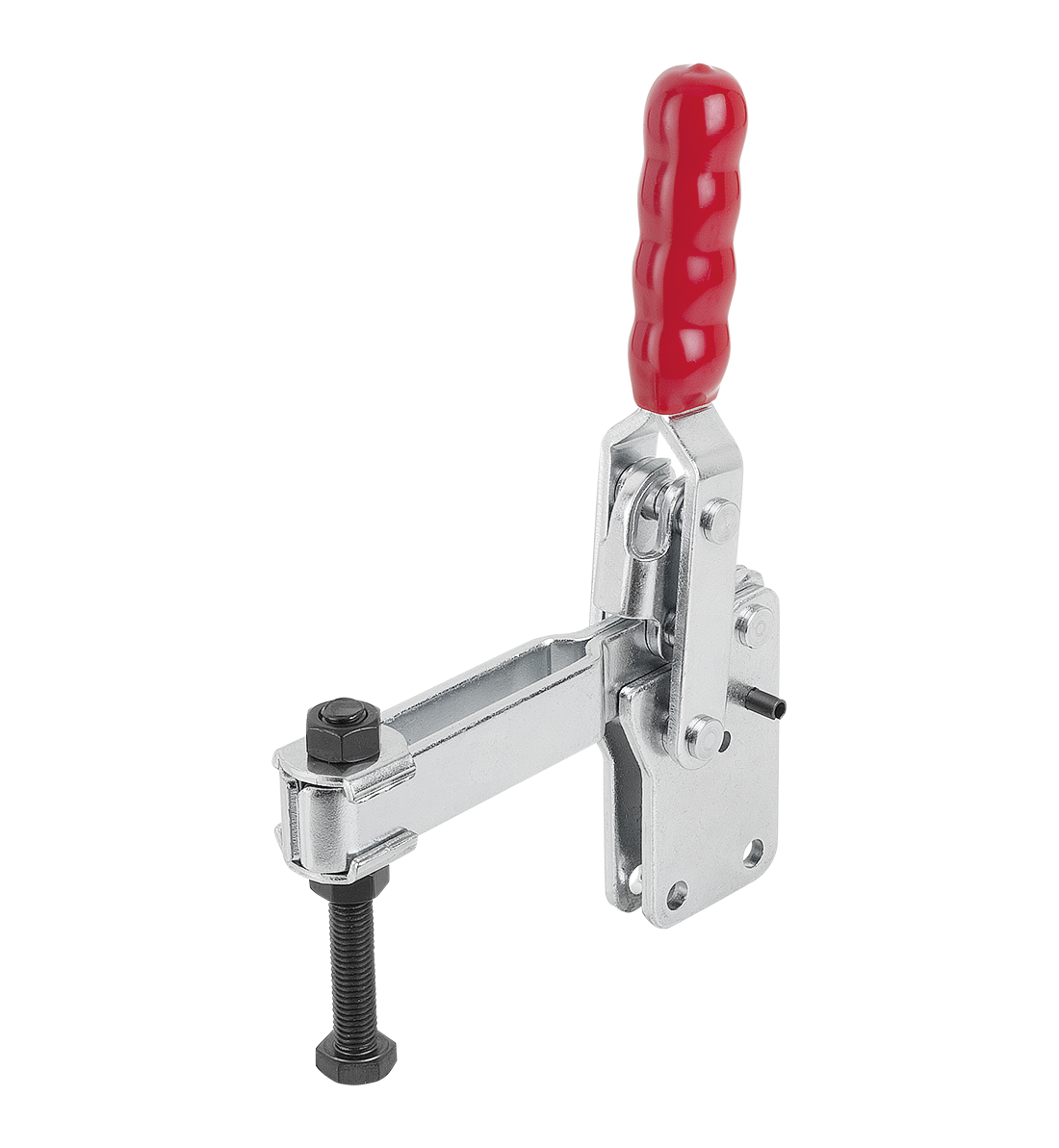

Toggle clamps vertical with straight foot and adjustable clamping spindle
 K1248

Toggle clamps vertical with straight foot and adjustable...

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with version K1248.02400.Accessory:K0688
K0689
K0690
K0101
K1442
K0102
K0103
K1443
K0104
K0106
K1441Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K1248 Toggle clamps vertical with straight foot and adjustable clamping spindle 267 kB

Drawings

Toggle clamps vertical with straight foot and adjustable clamping spindle

Item selection/filter
Order No.Opening
angle of
holding arm		Opening
angle of
handle		Hand
force
FH N		Retaining
force
F1 N		Retaining
force
F2 N		Clamping
force
F3 N		Clamping
force
F4 N		CADAcc.PriceOrder
K1248.02400100°56°150120024008001600 23.13 $ (USD)
K1248.0700090°70°2503200700014003000 43.92 $ (USD)
K1248.08000100°50°2803000800018003900 57.43 $ (USD)
Order No.A

A1BB1B2B3CC1C2DHLL1L2MCADAcc.PriceOrder
K1248.024001934,912614,38,346,8167,17,21561419773,2M8x63 23.13 $ (USD)
K1248.070003253201022,712,770,4259,58,724517712490M12x100 43.92 $ (USD)
K1248.0800050,876,2201026,516,5113,531,812,712,3335229,2153105M16x150 57.43 $ (USD)
