Tube Clamps Swivel aluminum

K0489

Tube Clamps Swivel aluminum

Products
- Tube Connectors
  - Tube Clamps Swivel aluminum

Item description/product images

DescriptionMaterial:Cast aluminum.
DIN 7984 screws and DIN 985 nuts, steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.Note:Swivel tube clamps can be infinitely rotated through 180°.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0489 Tube Clamps Swivel aluminum

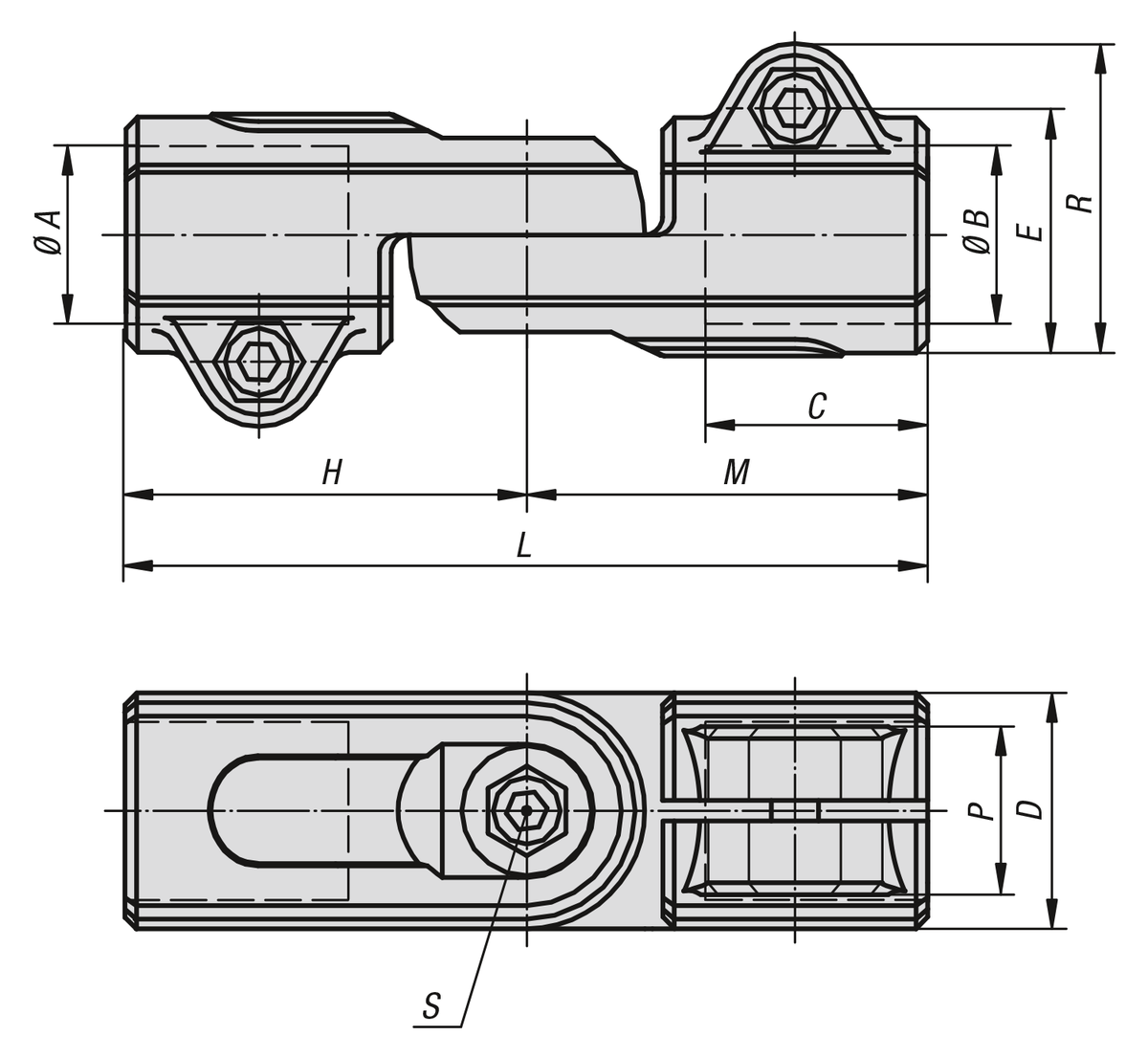

Drawings

Tube Clamps Swivel aluminum

Item selection/filter

Order No.	A	B	C	D	E	H	L	M	P	R	S	CAD	Acc.	Price	Order
K0489.512	12,1	12,1	25	26	29,4	44	88	44	21	37,5	M6x18			53.12 $ (USD)
K0489.514	14,1	14,1	25	26	29,4	44	88	44	21	37,5	M6x18			53.12 $ (USD)
K0489.516	16,1	16,1	25	26	29,4	44	88	44	21	37,5	M6x18			53.12 $ (USD)
K0489.518	18,1	18,1	25	26	29,4	44	88	44	21	37,5	M6x18			53.12 $ (USD)
K0489.520	20,1	20,1	45	40	40	73	146	73	33	51	M8x35			71.46 $ (USD)
K0489.525	25,1	25,1	45	40	40	73	146	73	33	51	M8x35			71.46 $ (USD)
K0489.530	30,1	30,1	45	40	40	73	146	73	33	51	M8x35			71.46 $ (USD)
K0489.540	40,15	40,15	60	56	56	100	200	100	48	70	M10x50			100.44 $ (USD)
