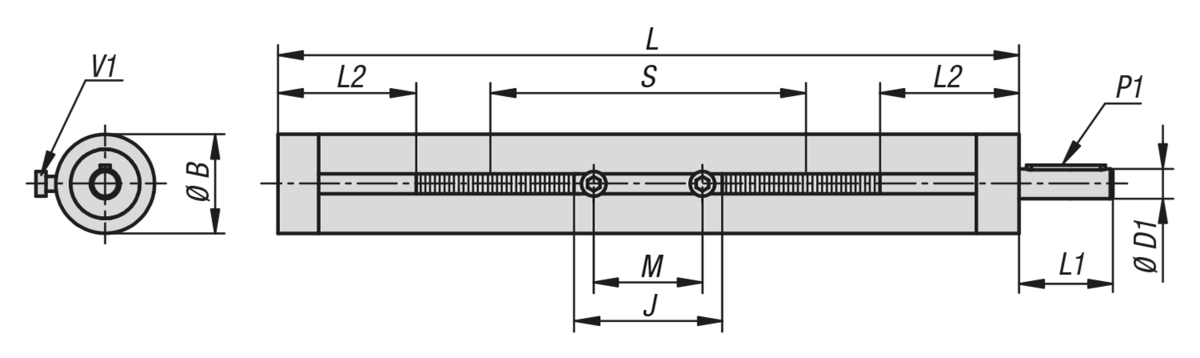

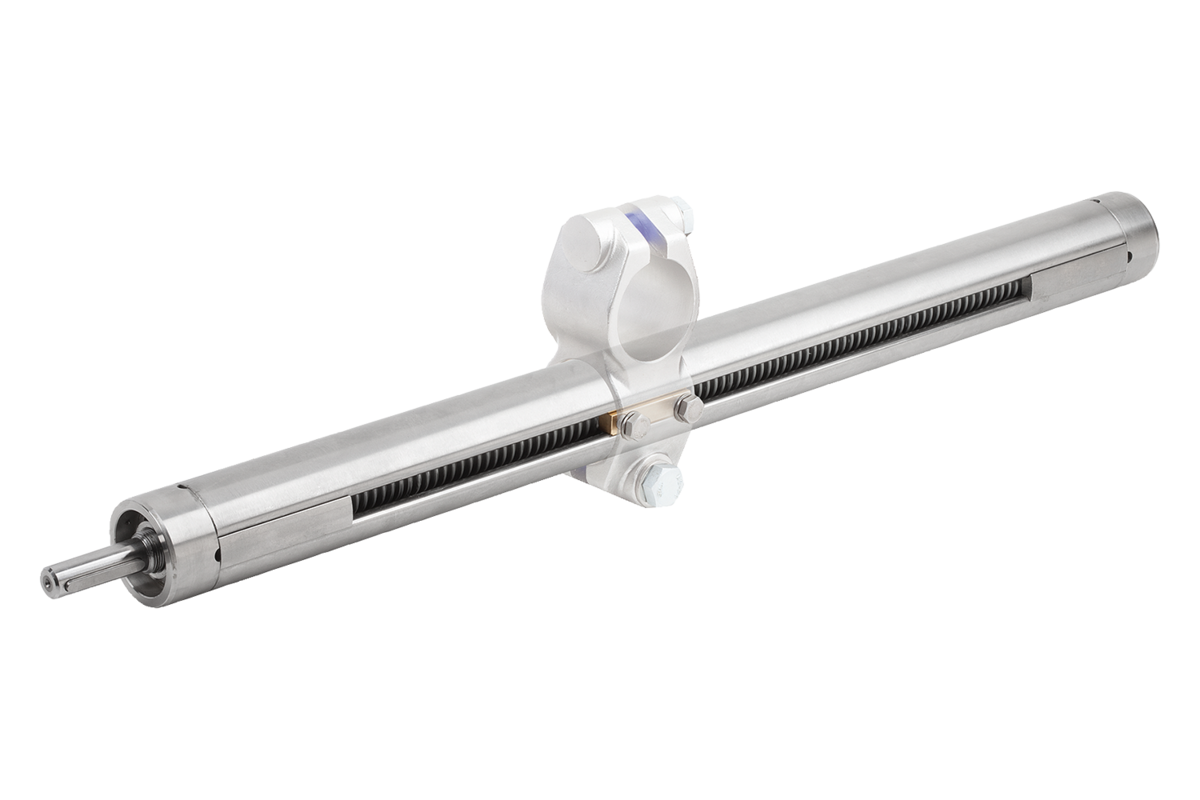

Travel S = Length L – (2 x L2 + J).On request:Left-hand thread, 2 drive cones, other travels or handwheels.Accessory:- Guides, stainless steel, K0496, K0498, K0499 - Clamping elements of the tubular connection systemFunctional principle:A rotating movement of the threaded spindle is converted into a linear movement of the guide carriage.Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
