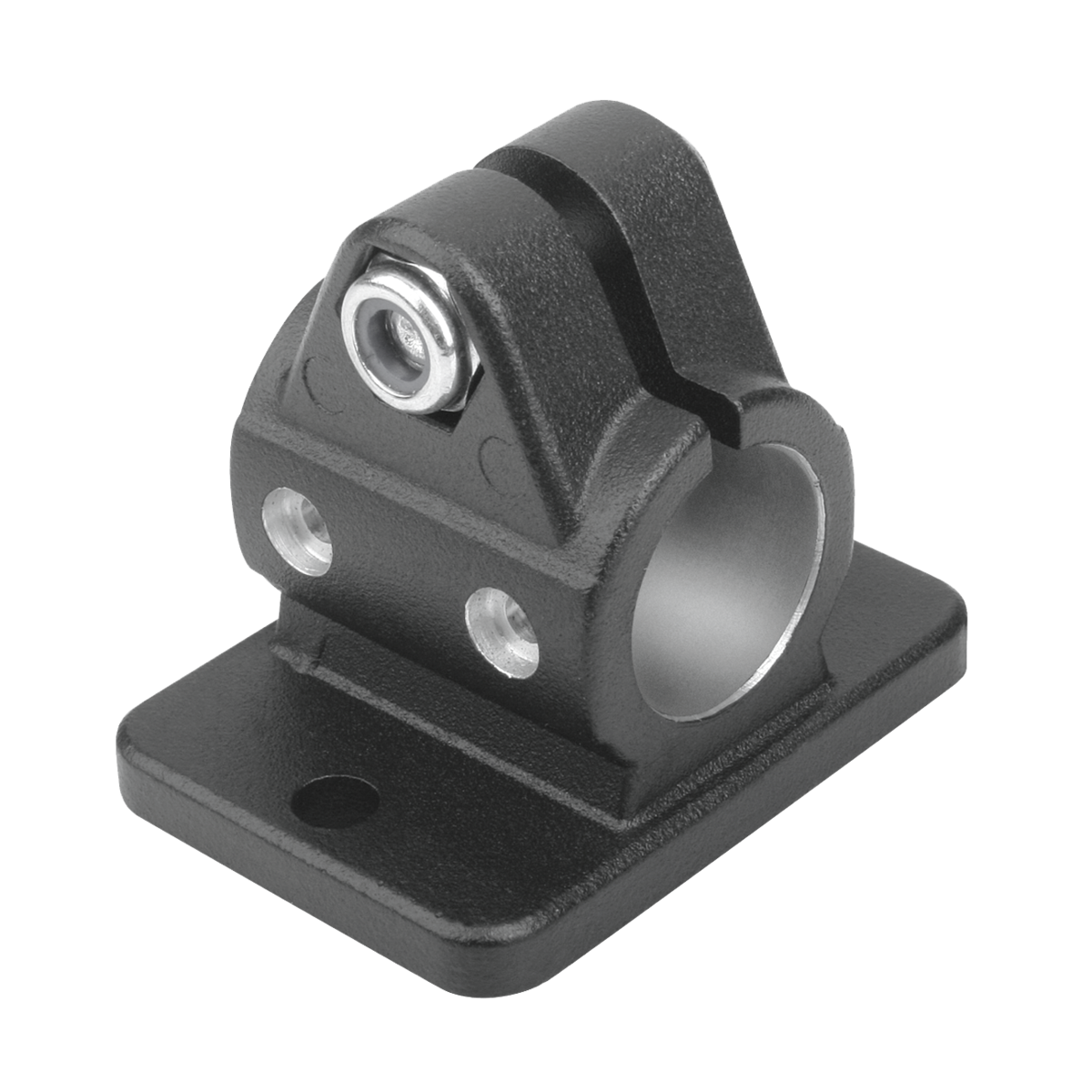

Linear actuator connector clamps flange

K0498

Linear actuator connector clamps flange

Products
- Tube Connectors
  - Linear actuator connector clamps flange

Item description/product images

DescriptionMaterial:Cast aluminum.
DIN 7984 screws and DIN 985 nuts, steel.Version:Black powder-coated.
Screws and nuts electro zinc-plated.Note:* Elongated holeOn request:Adjustable handles for tightening.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0498 Linear actuator connector clamps flange

Drawings

Linear actuator connector clamps flange

Item selection/filter

Order No.	Type E	A	B	C	D	M1	M2	M3	M4	M5	V1	CAD	Acc.	Price	Order
K0498.18	18	37	42,5	50	5,5 (2x)	18	-	40	-	-	M6x16			39.04 $ (USD)
K0498.30	30	55	63	78	6,5* (2x)	30	-	60	-	53	M8x25			44.69 $ (USD)
K0498.40	40	80	87	105	8,5* (4x)	42	52	82	60	80	M10x30			74.43 $ (USD)
K0498.50	50	92	100	130	10,5* (4x)	50	60	100	62	98	M10x35			76.27 $ (USD)
