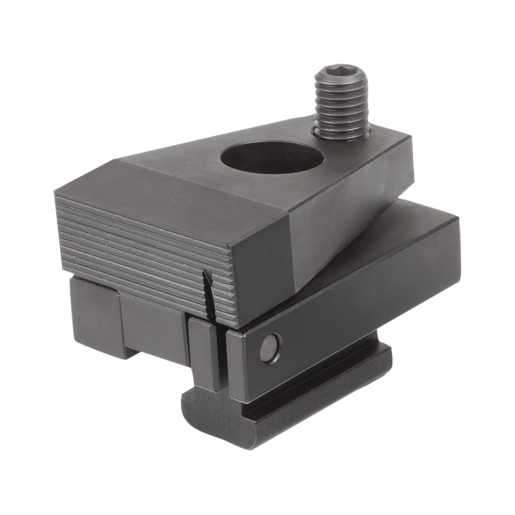

Side clamps, Form A, with flat jaw
K1386_A

Side clamps, Form A, with flat jaw

go back

Item description/product images

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Tightening the ball-end thrust screw moves the jaw plates forwards. The workpiece is pushed against the fixed stop and simultaneously forced down onto the seating face. The seating face for the workpiece can be mounted directly on the machine table. Special features:
RoHS

Drawings

Side clamps, Form A, with flat jaw

Item selection/filter

Order No.FormSlot
width
BD

D1HH1H2LL1S1
(travel)
Clamping
force
N
Tightening
torque
max. Nm
CADAcc.PriceOrder
K1386.110A1032M88,4242085228370003255.36 $ (USD)
K1386.114A1448M1212,537301172404150009299.78 $ (USD)
K1386.118A1868M1616,5473513864172150020358.99 $ (USD)
