{"product":{"productId":"agid.687","price":20.94,"name":"GRIP REVOLVING SIZE:1 D=M06X9, D1=25,THERMOSET HIGH-POLISH FINISH BLACK,COMP:STAINLESS STEEL BRIGHT, OVAL"},"currency":"USD"}

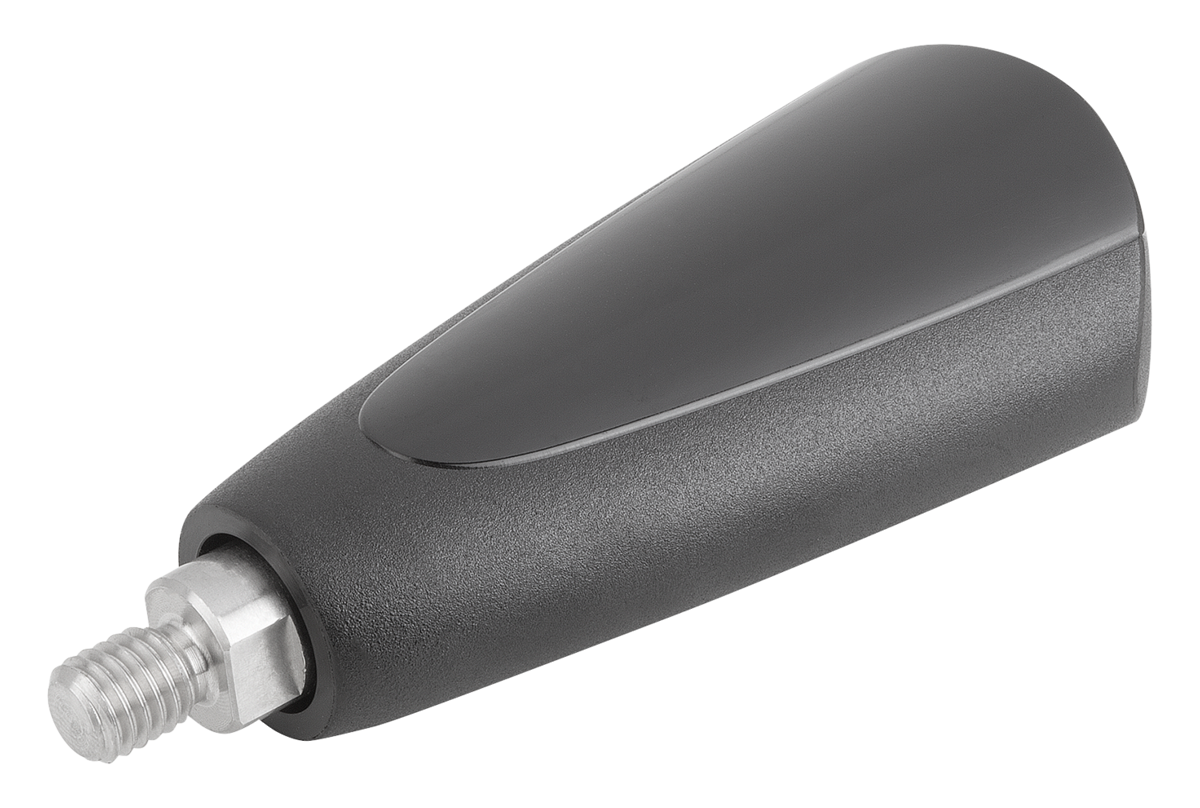

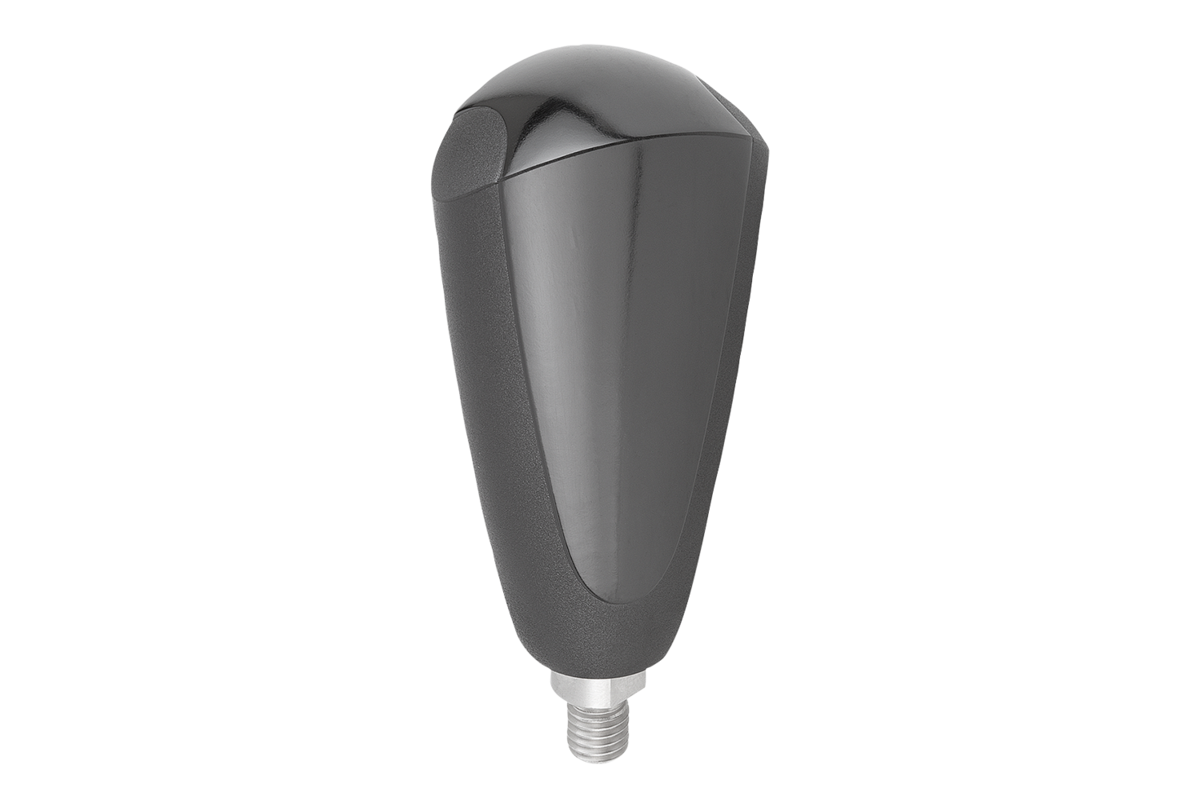

Grip
revolving
thermoset
high-polish finish black
- Grips for disc handwheels with revolving grip (K0164)
- Application sectors: machine, plant, equipment construction and measuring devices
- Different thread sizes
- high-gloss polished
Sales unit
$20.94 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Outside diameter
25
D=Thread
M6
L1=Handle length
54,7
L=thread length
9
Component
color
bright
Component
material
stainless steel
D2
8
D3
18
Item
Grip
L2
4,5
Main
color
high-polish finish black
Main
material
thermoset
SW
7
Size
1
Thread type
external thread
Version 1
revolving
Version 2
oval
Description
Material
Thermoset PF 31, black.
center pin nickel-plated steel or bright 1.4305 stainless steel.
Snap ring 1.4310 stainless steel.
Version
High-gloss polished.
Note
These grips are suitable as replacement handles for disc handwheels K0164.
