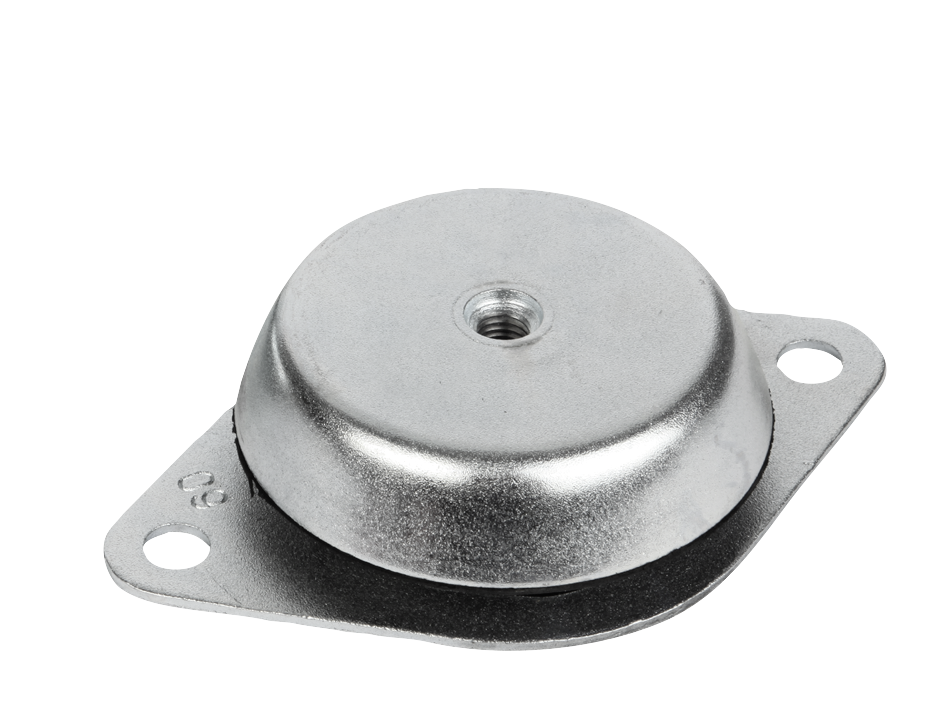

Machine feet, style A

Machine feet, style A

go back

Item description/product images

DescriptionMaterial:Metal parts, steel grade 5.6.
Elastomer, natural rubber,
medium hardness, Shore 60.
Version:Steel electro zinc-plated.Note:These machine feet have proven themselves to be universally applicable elements for the elastic support of all types of machine. They are commonly used wherever large horizontal movements are to be avoided. The horizontal rigidity is higher in all directions than the vertical rigidity. If used correctly they are excellent at preventing the transfer of vibration and noise.

Machine feet with shear protection are available for situations where tensile forces are to be expected.

The indicated load data are reference values for static loads by rubber hardness of Shore 60A.
On request:Rubber hardness Shore 40 or 70 A.


Machine feet, style A

Item selection/filter

Item No.StyleVersion

ABDD1D2HLLoad rating
max. kN
K0687.062060Awithout tear protection856662M108,2301101,5on request
K0687.062160Awith tear protection856662M108,2301101,5on request
K0687.078060Awithout tear protection1107878M109301281,8on request
K0687.078160Awith tear protection1107878M109301281,8on request
K0687.092060Awithout tear protection1109686M1210,2451403on request
K0687.092160Awith tear protection1109686M1210,2451403on request
K0687.106060Awithout tear protection140110106M1212,4391703,6on request
K0687.106160Awith tear protection140110106M1212,4391703,6on request
