Angle elements, T2 Type I

K1048

Angle elements, T2 Type I

Products
- Tube Connectors
  - Angle elements, T2 Type I

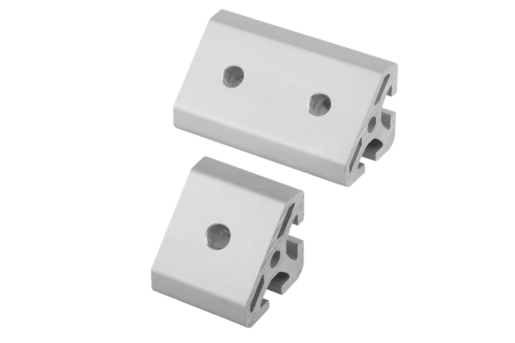

Item description/product images

DescriptionMaterial:aluminum.Version:anodized.Note:Angle element for fastening two profiles at a 45° angle and for making struts or ties.
The angle element can be fastened with universal connector sets and ISO 7380 round-head screws.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1048 Angle elements, T2 Type I

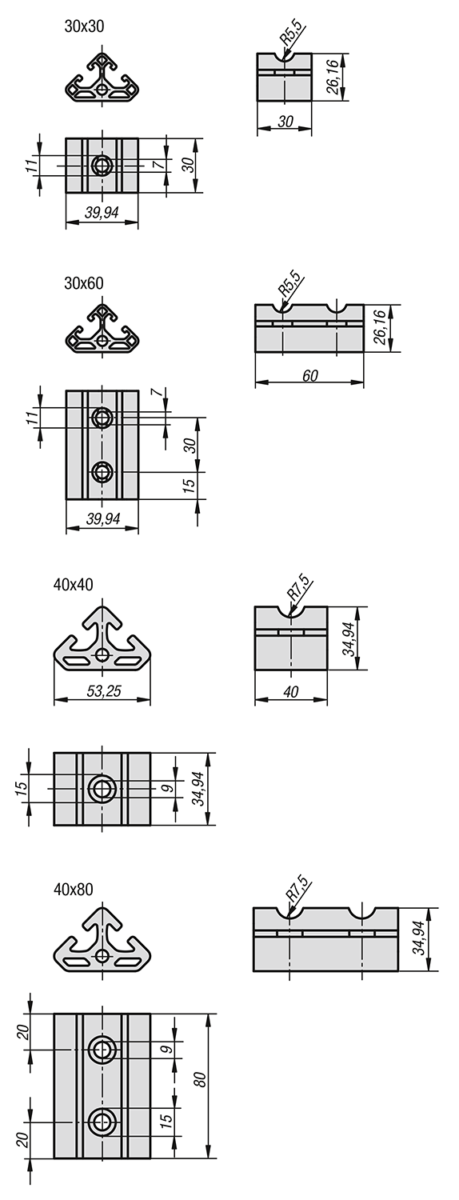

Drawings

Angle elements, T2 Type I

Item selection/filter

Order No.	Type	Slot width	Version	CAD	Acc.	Price	Order
K1048.063030	I	6	30 x 30			20.61 $ (USD)
K1048.063060	I	6	30 x 60			26.88 $ (USD)
K1048.084040	I	8	40 x 40			24.85 $ (USD)
K1048.084080	I	8	40 x 80			38.98 $ (USD)
