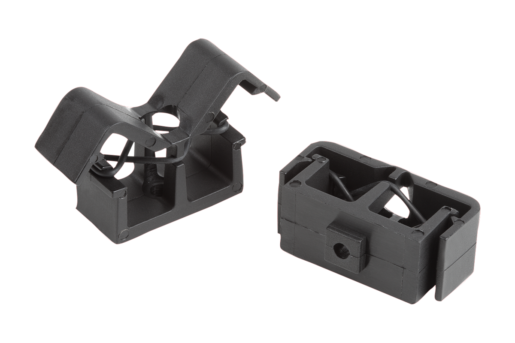

DescriptionMaterial:Polyamide. O-ring FPM 70.Version:black.Note:The cable clip is a fastening component for cables and hoses with a diameter of up to 12 mm.
Can be mounted on panel elements or aluminum profiles (8 or 10 mm slots) with a cap screw or pan head screw and a slot key. The cables are held in place by the stretched O-ring.

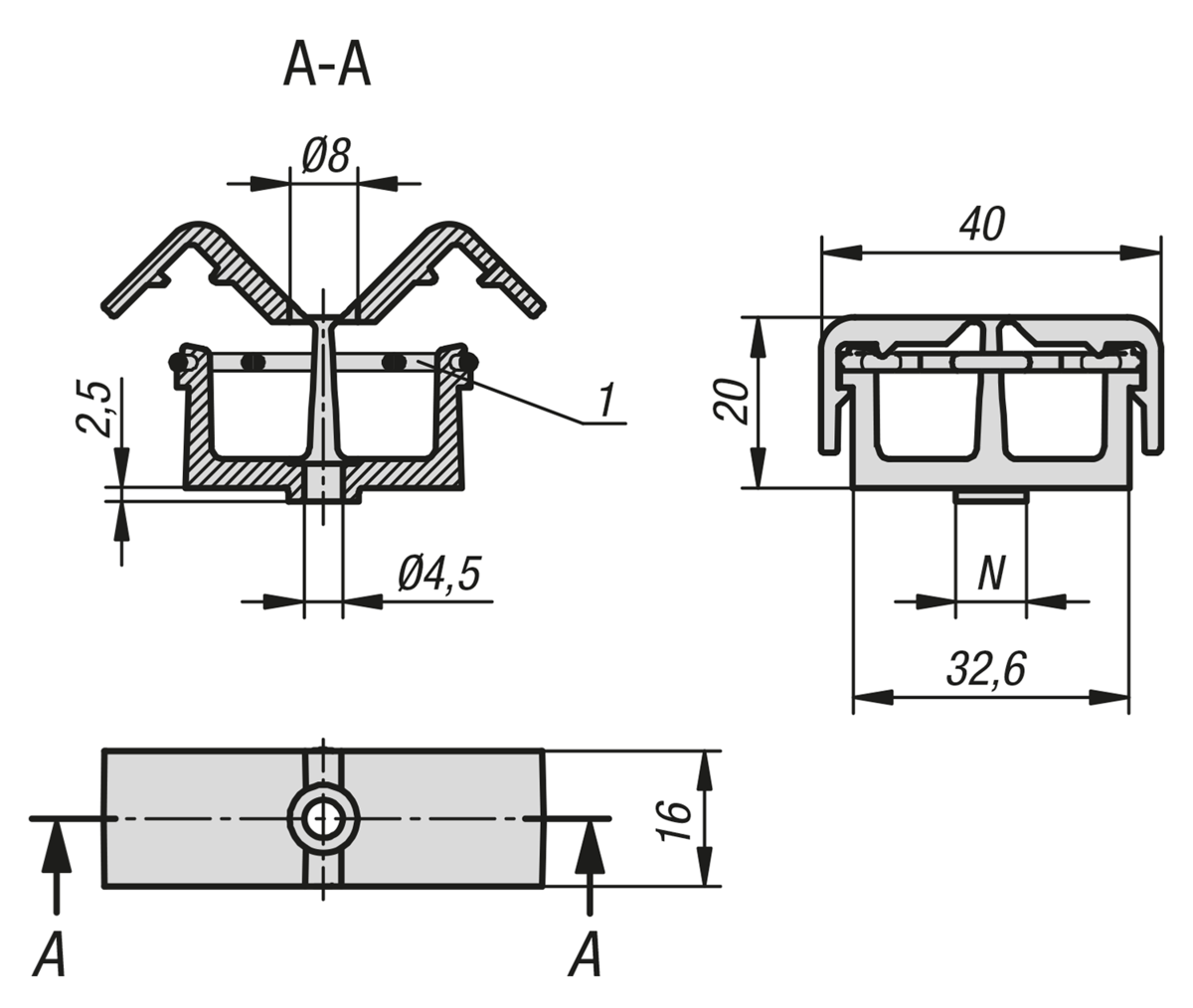

With two separate channels.Drawing reference:
1) O-ring
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
