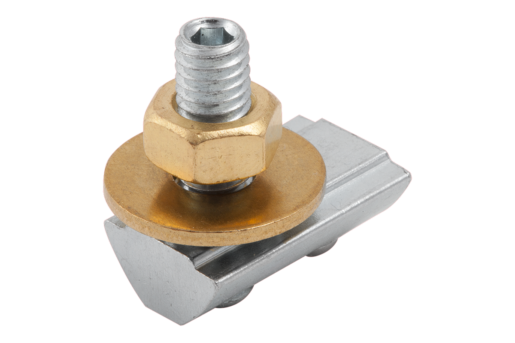

DescriptionMaterial:Slot key, grub screw and serrated washer, steel. Nut and washer, brass.Version:Slot key, grub screw and serrated washer, electro zinc-plated.Note:For protecting installations and persons. Connectors for earthing aluminum profile structures and interconnecting the aluminum profiles by integrating them into the protective earth (PE) system. Conductive contact is established through defined destruction of the oxide layer in the slot base and on the slot flanks.
The cable lug must be positioned between the serrated washer and the washer during assembly.Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
