K1714

Stainless steel telescopic slides for side mounting,...

Products
- Product Lines
  - Stainless steel
    - Stainless steel telescopic slides for side mounting, over-extension, load capacity up to 70 kg

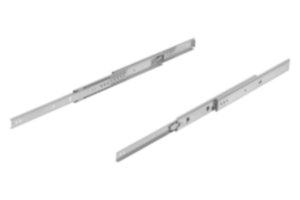

Item description/product images

DescriptionMaterial:

Slides stainless steel 1.4301 (AISI 304 equivalent).
Ball cage stainless steel 1.4301 (AISI 304 equivalent).
Balls stainless steel 1.4034 (AISI 420 equivalent).

Version:Slides bright.
Ball cages bright.
Balls bright.Order information:Sold in pairs.Note:On telescopic slides with over-extension, the travel is greater than the installed length. Latches in open position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 cycles.

The load capacity is ca. 75% lower by horizontal mounting.

The head height of the fastening screws should not exceed 2.5 mm otherwise there is a risk of collision with other parts of the slide.Temperature range:-20°C to +110°C.Benefits:Latches in open position
Quick frontal releaseSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1714 Stainless steel telescopic slides for side mounting, over-extension, load capacity up to 70 kg

148 kB

Technical information for telescopic slides

348 kB

Overview of items telescopic slides

37,1 kB

Drawings

Item selection/filter

Item No.	Assembly	Product type	Loading per pair kg	Packaging type	Price
K1714.0305	side mounting	standard	70	1 piece = 1 pair	220.20 $ (USD)
K1714.0356	side mounting	standard	68	1 piece = 1 pair	242.11 $ (USD)
K1714.0406	side mounting	standard	65	1 piece = 1 pair	260.47 $ (USD)
K1714.0457	side mounting	standard	62	1 piece = 1 pair	282.61 $ (USD)
K1714.0508	side mounting	standard	57	1 piece = 1 pair	310.31 $ (USD)
K1714.0559	side mounting	standard	52	1 piece = 1 pair	347.96 $ (USD)
K1714.0610	side mounting	standard	46	1 piece = 1 pair	360.26 $ (USD)
K1714.0660	side mounting	standard	41	1 piece = 1 pair	375.52 $ (USD)
K1714.0711	side mounting	standard	36	1 piece = 1 pair	376.99 $ (USD)

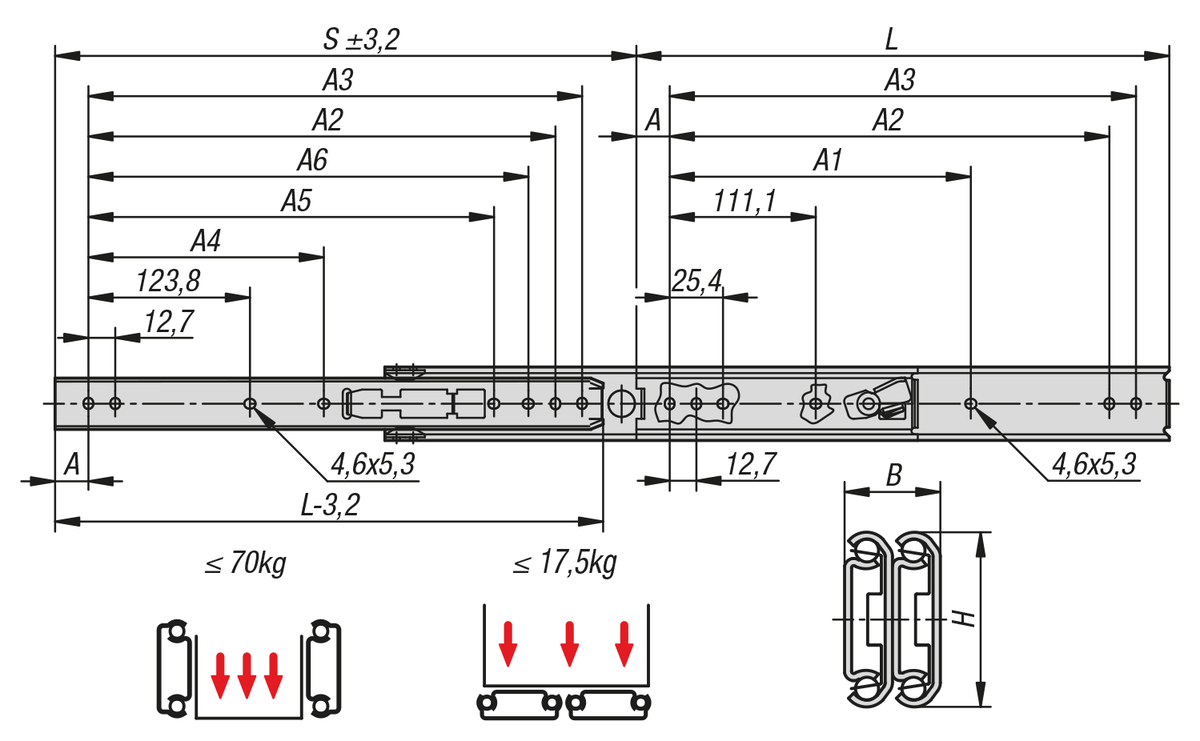

Order No.	A	A1	A2	A3	A4	A5	A6	B	H	Travel S	L	Price
K1714.0305	15,9	-	260,3	273	-	-	-	19,1	35,3	327	305	220.20 $ (USD)
K1714.0356	15,9	-	311,1	323,8	-	-	298,4	19,1	35,3	378	356	242.11 $ (USD)
K1714.0406	15,9	250,8	361,9	374,6	-	-	349,2	19,1	35,3	429	406	260.47 $ (USD)
K1714.0457	15,9	301,6	412,7	425,4	212,7	-	400	19,1	35,3	479,5	457	282.61 $ (USD)
K1714.0508	15,9	352,4	463,5	476,2	238,1	365,2	450,8	19,1	35,3	530,5	508	310.31 $ (USD)
K1714.0559	15,9	403,2	514,3	527	263,5	415,9	501,6	19,1	35,3	581	559	347.96 $ (USD)
K1714.0610	15,9	454	565,1	577,8	288,9	466,7	552,4	19,1	35,3	632	610	360.26 $ (USD)
K1714.0660	15,9	504,8	615,9	628,6	314,3	517,7	603,2	19,1	35,3	683	660	375.52 $ (USD)
K1714.0711	15,9	555,6	666,7	679,4	339,7	568,3	654	19,1	35,3	733,5	711	376.99 $ (USD)
