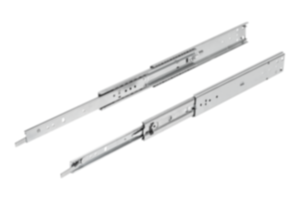

- K2091
Steel telescopic slides
for side mounting, over-extension, load capacity up to 68 kg
- Hinges
- Rubber Buffers
- Latches, snap locks, slam latches
- Swivel feet, levelling feet
- Locating Components
- Leveling Elements
- Machine & Fixture Components
- Joints
- Magnets
- Level indicators, screw plugs
- Material handling
- Tools
- Product lines KIPP Inc.
|
|
|
K1566Telescopic slides, steel for slot mounting, partial extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel slides.
Plastic ball cages.
C-steel balls.Version:Slides electro zinc-plated.
Balls hardened.Order information:Supplied in pairsNote:On telescopic slides with partial extension, the travel is less than the installed length. These are a low-cost solution for guiding drawers or similar items with little friction and high lateral stability. Interlocking in closed position. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles.Note:The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
