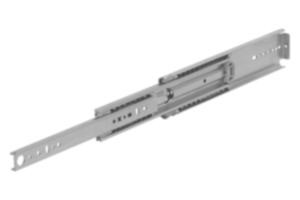

- K1720
Steel telescopic slides for side mounting, full extension, load capacity up to 272 kg
- K1721
Aluminium telescopic slides for side mounting, full extension, load capacity up to 300 kg
- K2018
Telescopic slides, steel
Double-T form, full extension, load capacity up to 305 kg
- K2073
Telescopic slides, steel
compact, full extension, load capacity up to 420 kg
- K2074
Telescopic slides, steel
compact, full extension, load capacity up to 480 kg
- K2019
Telescopic slides, steel
double arrangement, full extension, load capacity up to 133 kg
- K2020
Telescopic slides, steel
partial extension, load capacity up to 741 kg
- K2021
Telescopic slides, steel
S-form, full extension, load capacity up to 459 kg
- K2022
Linear ball bearing
with internal race, steel, load capacity up to 3,959 kg
- K2087
Steel telescopic slides
for side mounting, full extension, load capacity up to 68 kg
- K2088
Steel telescopic slides
for side mounting, full extension, load capacity up to 68 kg
- K2091
Steel telescopic slides
for side mounting, over-extension, load capacity up to 68 kg
- Hinges
- Rubber Buffers
- Latches, snap locks, slam latches
- Swivel feet, levelling feet
- Locating Components
- Leveling Elements
- Machine & Fixture Components
- Joints
- Magnets
- Level indicators, screw plugs
- Material handling
- Tools
- Product lines KIPP Inc.
|
|
|

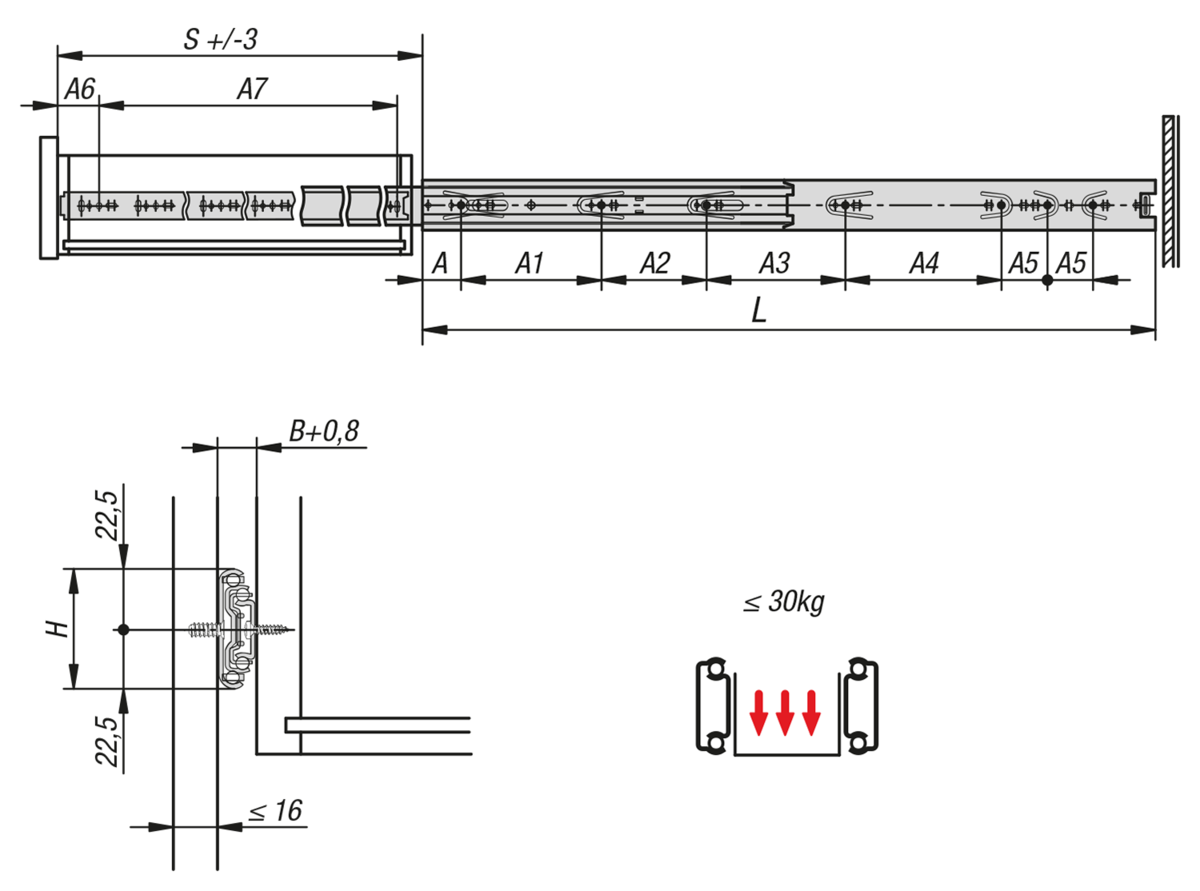

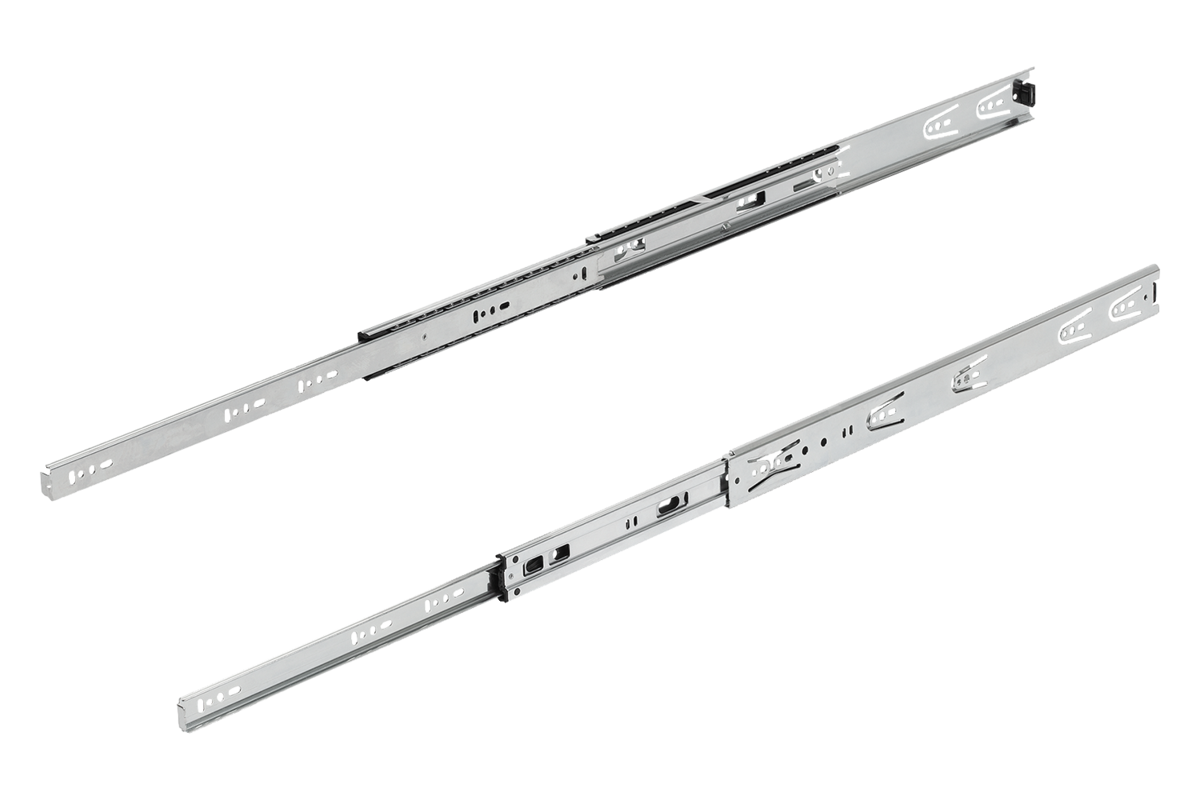

K1569Telescopic slides, steel for side mounting, full extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel and plastic.
Balls C-steel.Version:Slides electro zinc-plated and trivalent blue passivated.
Balls hardened.Order information:Supplied in pairsNote:On telescopic slides with full extension, the travel is equal to the installed length, which ensures greater comfort and accessibility. Interlocking in closed position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles.Note:The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
