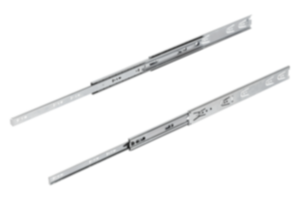

K1578Telescopic slides, steel for side mounting, over-extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel and plastic.
Balls C-steel.Version:Slides electro zinc-plated and trivalent blue passivated.
Balls hardened.Order information:Supplied in pairsNote:On telescopic slides with over-extension, the travel is greater than the installed length. Interlocking in closed position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles.Note:The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

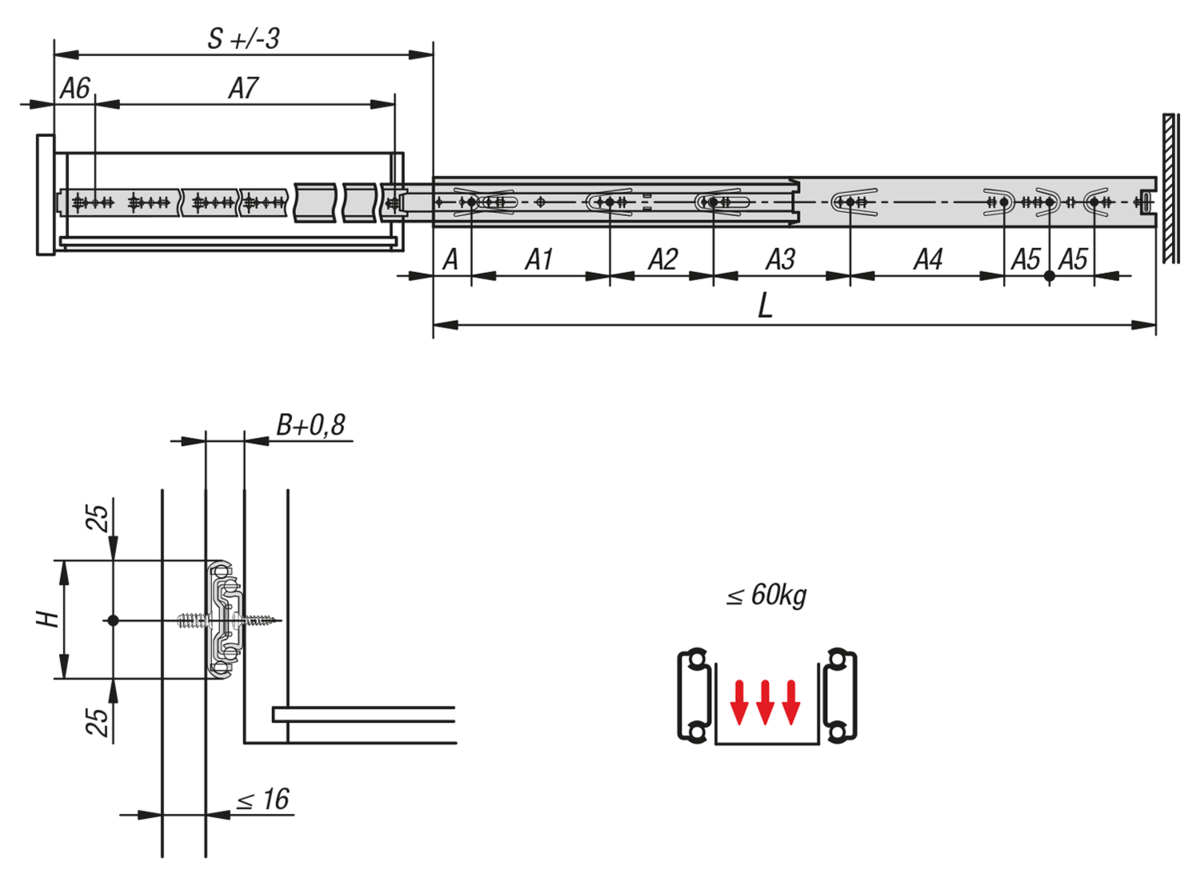

| Order No. | A | A1 | A2 | A3 | A4 | A5 | A6 | A7 | B
| H | L | Travel
S | Loading
per pair
kg | CAD | Acc. | Price | Order |
|---|
| K1578.0700 | 35 | 128 | 96 | 128 | 192 | 32 | 35 | 642 | 12,7 | 50 | 700 | 738 | 60 |  | | 88.33 $ (USD) | | | K1578.0250 | 35 | 128 | - | - | - | - | 35 | 192 | 12,7 | 50 | 250 | 288 | 60 | | | 42.45 $ (USD) | | | K1578.0300 | 35 | 128 | 96 | - | - | - | 35 | 242 | 12,7 | 50 | 300 | 338 | 60 | | | 45.90 $ (USD) | | | K1578.0350 | 35 | 128 | 96 | - | - | - | 35 | 292 | 12,7 | 50 | 350 | 388 | 60 | | | 50.51 $ (USD) | | | K1578.0400 | 35 | 128 | 96 | 96 | - | - | 35 | 342 | 12,7 | 50 | 400 | 438 | 60 | | | 55.09 $ (USD) | | | K1578.0450 | 35 | 128 | 96 | 128 | - | - | 35 | 392 | 12,7 | 50 | 450 | 488 | 60 | | | 59.66 $ (USD) | | | K1578.0500 | 35 | 128 | 96 | 128 | 64 | - | 35 | 442 | 12,7 | 50 | 500 | 538 | 60 | | | 64.26 $ (USD) | | | K1578.0550 | 35 | 128 | 96 | 128 | 64 | 32 | 35 | 492 | 12,7 | 50 | 550 | 588 | 60 | | | 70.00 $ (USD) | | | K1578.0600 | 35 | 128 | 96 | 128 | 96 | 32 | 35 | 542 | 12,7 | 50 | 600 | 638 | 60 | | | 75.71 $ (USD) | | | K1578.0650 | 35 | 128 | 96 | 128 | 160 | 32 | 35 | 592 | 12,7 | 50 | 650 | 688 | 60 | | | 81.46 $ (USD) | |
