K1718Steel telescopic slides for side mounting, over-extension, load... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Order information:Sold in pairs.Note:On telescopic slides with over-extension, the travel is greater than the installed length. Latches in closed position. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 or 80,000 cycles.
Not suitable for horizontal mounting.Temperature range:-20°C to +70°C.Benefits:Latches in closed position
Light running
Precise guidance for high lateral stabilitySpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Assembly | Product type | Load capacity
per pair
(80,000 cycles) kg | Loading pair
(10,000 cycles)
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K1718.0300 | side mounting | standard | 120 | 130 | 1 piece = 1 pair |  | | 107.03 $ (USD) | | | K1718.0350 | side mounting | standard | 120 | 140 | 1 piece = 1 pair | | | 116.05 $ (USD) | | | K1718.0400 | side mounting | standard | 130 | 150 | 1 piece = 1 pair | | | 125.19 $ (USD) | | | K1718.0450 | side mounting | standard | 140 | 160 | 1 piece = 1 pair | | | 134.01 $ (USD) | | | K1718.0500 | side mounting | standard | 140 | 160 | 1 piece = 1 pair | | | 143.14 $ (USD) | | | K1718.0550 | side mounting | standard | 140 | 160 | 1 piece = 1 pair | | | 152.36 $ (USD) | | | K1718.0600 | side mounting | standard | 120 | 150 | 1 piece = 1 pair | | | 161.53 $ (USD) | | | K1718.0700 | side mounting | standard | 110 | 130 | 1 piece = 1 pair | | | 179.58 $ (USD) | | | K1718.0790 | side mounting | standard | 100 | 100 | 1 piece = 1 pair | | | 197.71 $ (USD) | | | K1718.0900 | side mounting | standard | 80 | 90 | 1 piece = 1 pair | | | 331.20 $ (USD) | | | K1718.1000 | side mounting | standard | 70 | 80 | 1 piece = 1 pair | | | 349.38 $ (USD) | | | K1718.1100 | side mounting | standard | 60 | 70 | 1 piece = 1 pair | | | 367.59 $ (USD) | |

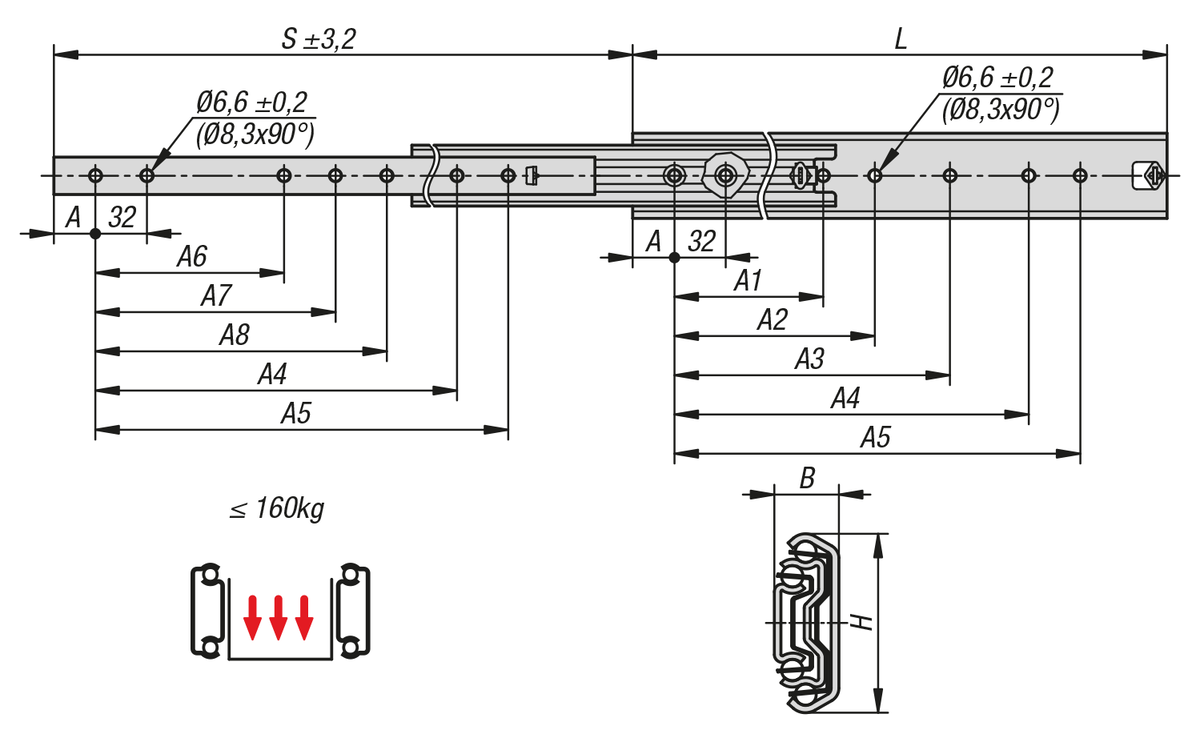

| Order No. | A
| A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K1718.0300 | 26 | - | - | - | 192 | 224 | - | - | - | 19,1 | 53,1 | 323,5 | 300 | | | 107.03 $ (USD) | | | K1718.0350 | 26 | - | - | - | 224 | 256 | - | - | - | 19,1 | 53,1 | 373,5 | 350 | | | 116.05 $ (USD) | | | K1718.0400 | 26 | - | 160 | 192 | 288 | 320 | 128 | 160 | - | 19,1 | 53,1 | 423,5 | 400 | | | 125.19 $ (USD) | | | K1718.0450 | 26 | - | 160 | 192 | 320 | 352 | 128 | 160 | - | 19,1 | 53,1 | 473,5 | 450 | | | 134.01 $ (USD) | | | K1718.0500 | 26 | - | 192 | 224 | 384 | 416 | 160 | 192 | - | 19,1 | 53,1 | 523,5 | 500 | | | 143.14 $ (USD) | | | K1718.0550 | 26 | - | 192 | 224 | 416 | 448 | 160 | 192 | - | 19,1 | 53,1 | 573,5 | 550 | | | 152.36 $ (USD) | | | K1718.0600 | 26 | - | 256 | 288 | 480 | 512 | 192 | 256 | - | 19,1 | 53,1 | 623,5 | 600 | | | 161.53 $ (USD) | | | K1718.0700 | 26 | 288 | 320 | 544 | 576 | 608 | 256 | 288 | 544 | 19,1 | 53,1 | 723,5 | 700 | | | 179.58 $ (USD) | | | K1718.0790 | 26 | - | 352 | 384 | 672 | 704 | 320 | 352 | 384 | 19,1 | 53,1 | 803,5 | 790 | | | 197.71 $ (USD) | | | K1718.0900 | 26 | - | 448 | 480 | 768 | 800 | 352 | 384 | 416 | 19,1 | 53,1 | 923,5 | 900 | | | 331.20 $ (USD) | | | K1718.1000 | 26 | 448 | 480 | 512 | 864 | 896 | 448 | 480 | - | 19,1 | 53,1 | 1023,5 | 1000 | | | 349.38 $ (USD) | | | K1718.1100 | 26 | 448 | 544 | 576 | 992 | 1024 | 448 | 480 | 512 | 19,1 | 53,1 | 1123,5 | 1100 | | | 367.59 $ (USD) | |
