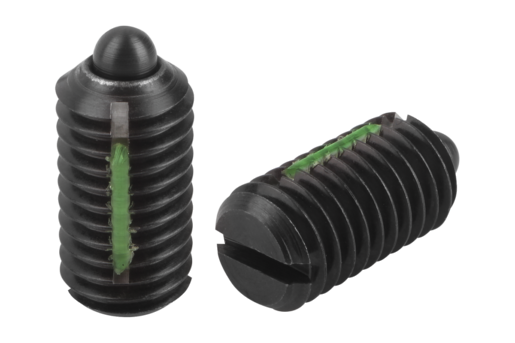

K0323 MetricSpring Plungers with thread lock, pin style, slotted, steel,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.
Thread lock nylon.Version:Black oxidized.
Thrust pin hardened.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| D | D1 | H | L | L1 | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| K0323.04 | M4 | 1,8 | 1,5 | 9 | 5 | 0,6 | 6 | 20 | 0,18 | 0,12 |  | | 3.33 $ (USD) | | | K0323.05 | M5 | 2,4 | 2 | 12 | 6 | 0,8 | 6 | 20 | 0,12 | 0,08 | | | 3.37 $ (USD) | | | K0323.06 | M6 | 2,7 | 2 | 14 | 7 | 1 | 7 | 20 | 0,44 | 0,21 | | | 3.41 $ (USD) | | | K0323.08 | M8 | 4 | 2 | 16 | 8 | 1,2 | 15 | 30 | 1,1 | 0,38 | | | 3.92 $ (USD) | | | K0323.10 | M10 | 4,5 | 2,5 | 19 | 9 | 1,6 | 20 | 35 | 1,36 | 0,62 | | | 4.17 $ (USD) | | | K0323.12 | M12 | 6 | 3,5 | 22 | 10 | 2 | 30 | 55 | 2,11 | 1,41 | | | 8.62 $ (USD) | |
